Description
Ranco A12-700 Commercial Refrigeration Cold Temperature Control
The Ranco® A12 and 9531 Series Constant Cut-in Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.
Features and Benefits
- Laser-welded stainless-steel bellows.
- Fixed or adjustable temperature settings.
- High-amperage contacts.
- Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements.
- Constant On or Off positions available.
- Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts.
- Standard 1/4” quick-connect terminals with optional screw terminals.
Ranco #A12-700 Specifications
- Switch Type: SPST
- Voltage: 120/240
- For Use With: Automatic Beverage Dispensers, Reach-In Coolers And Various Other Medium Temperature Commercial Equipment Requiring Off Cycle Defrost, Vending Machines
- Warm Off: 26
- Bulb Dia. (In.): -
- Normally Off (F): 18
- Depth (In.): -
- Pilot Duty Contacts (VA): -
- Construction: -
- Normally On (F): -
- Temp. Differential Low (F): -
- Application: The control is used in vending machines, automatic beverage dispensers, reach-in coolers and various other medium temperature commercial equipment.
- Includes: -

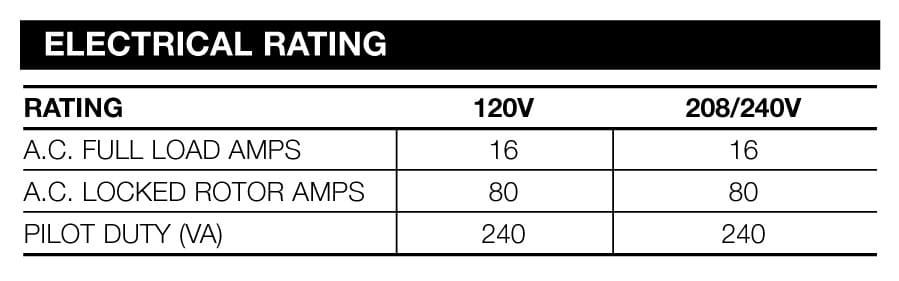

- Locked Rotor Amps: 80
- Switch Action: Close on Rise
- Full Load Amps: 16/16
- Width (In.): -
- Warm On: -
- Capillary Type: Capillary
- Capillary Length (In.): 84 in
- Bulb Size Length (In.): -
- Type: Constant Cut In Cold Control
- Agency Compliance: -
- Cold Off: 11.5 Degrees F
- Control Range (F): 18 to 27
- Cold On: -
- Item: Refrigeration Control
- Height (In.): -
- Constant Differential (F): -
- Country of Origin (subject to change): Mexico
