Robertshaw 4200-025 Commercial Cooking Gas Thermostat
The Robertshaw® 4200 Series Gas Thermostat is a heavy-duty, high-capacity gas thermostat. These units are available with modulating only or with modulating snap-acting bypass. Both pilot and bypass adjustments are provided. Pilot outlets and customized settings are optional. They are available for a wide variety of applications such as deck ovens, convection ovens, baking ovens, and ranges.
Features and Benefits
- Heat resistant materials and rugged design.
- The pilot and bypass keys are accessible and the pilot and keys are slotted for easy adjustment from the front of the control.
- Provides temperature control on most gas appliance systems.
- Allows for low temperature control.
- Modulates the main gas supply and controls the bypass gas with a snap under the same thermostatic action.
- Bulb and capillary assemblies supplied in copper, nickel plated copper or steel.
- 4-Way mounting position.
- RoHS Compliant.
Robertshaw #4200-025 Specifications
- Series Application: FDO Gas Thermostat, Uni-Kit Body Type #1
- Temperature Range: 150°F to 550°F (66°C to 288°C)
- Capillary Length: 54"
- Bulb Size: 3/16" x 14-3/4" Nickel

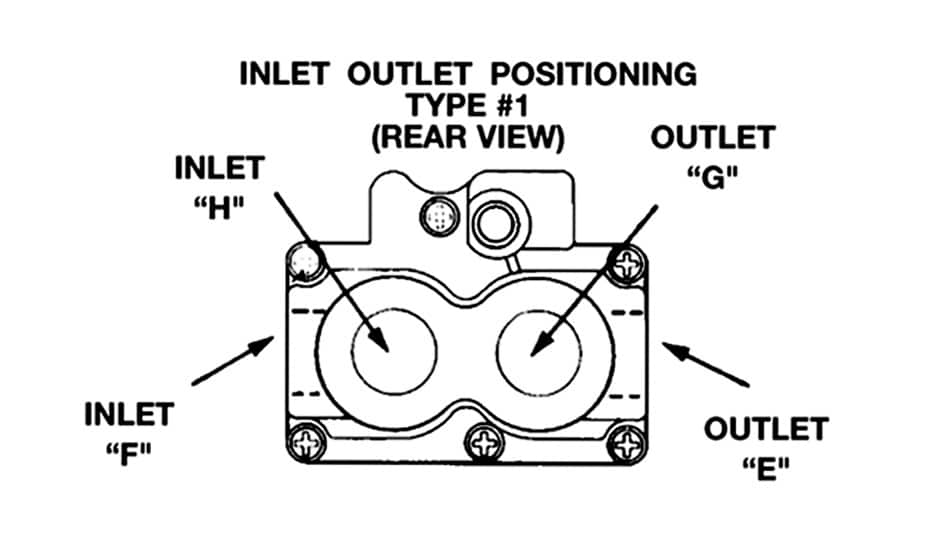

- Inlet Rear "H" 3/8" Pipe
- Inlet Rear "F" 3/8" Pipe
- Mounting Position: 4-Way
- Outlet Rear "G": 3/8" Pipe
- Outlet Rear "E": 3/8" Pipe
- Pilot Outlet: Side & Rear
- Comments: FDO-3-05-54, Uni-Kit
- Country of Origin (subject to change): Mexico
Uni-Line® and Robertshaw® are trademarks of Robertshaw, its subsidiaries and/or affiliated companies. All other brands mentioned may be the trademarks of their respective owners.
