Description

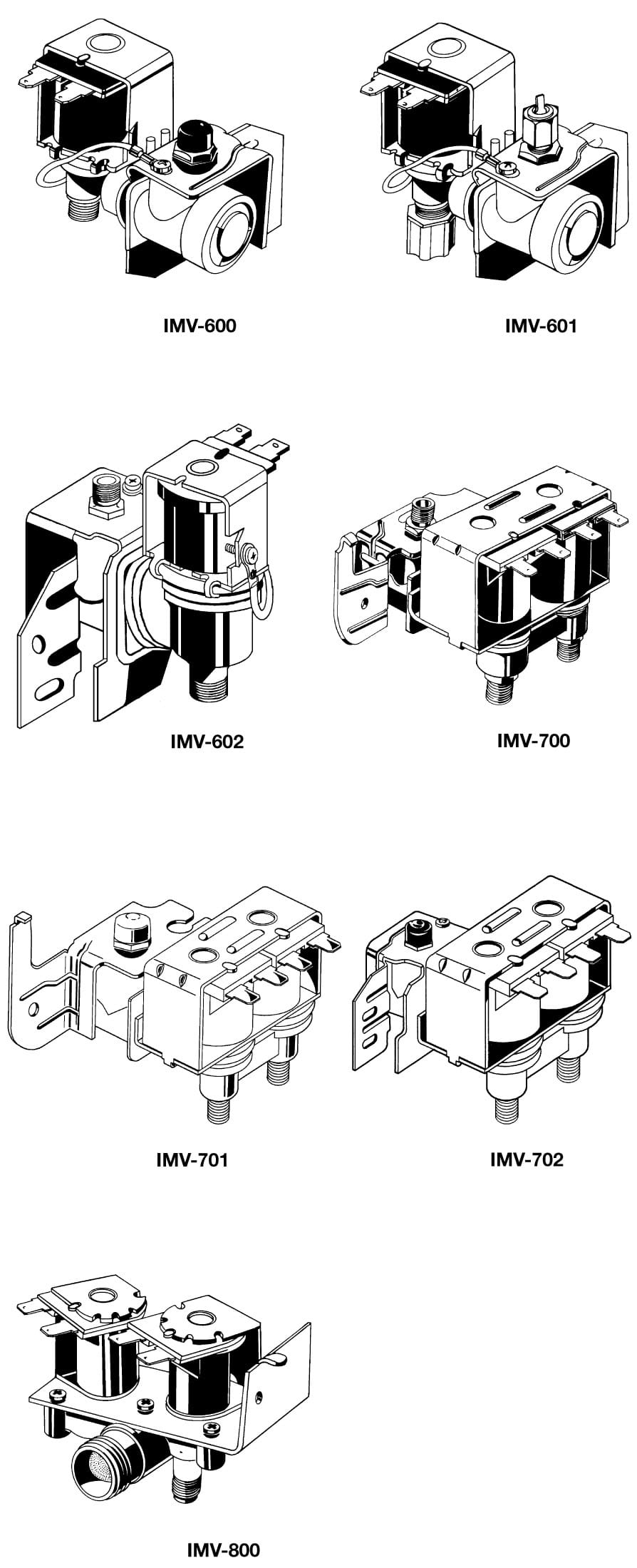

Robertshaw IMV-701 Refrigerator Water Valve
The Robertshaw® S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.
Features and Benefits
- Direct acting armature provides high flow capacity with minimum power requirements.
- Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant.
- Unique armature and seat design reduce unwanted particles from entering the armature area.
- Armature is designed with clearances which minimize the possibility of jamming due to foreign materials.
- Bodies are made of polypro which provides high resistance to corrosion and mineral deposits.
- Suitable for applications using water at temperatures up to 160°F (71°C).
Robertshaw #IMV-701 Specifications
- Series Application: Residential Ice Machine Water Valve N-86 Dual
- Electrical Rating: 120V AC, 60 Hz, 15W/10W
- Body Material: Polypro
- Inlet Size: 7/16" 24 UNS
- Operating Pressure: 20 PSI to 120 PSI
- Outlet (1) - Icemaker: 7/16"-20 UNF
- Flow Rate: No Flow Control
- Factory Part Number: K-75425
- Replaces: Electrolux 218859701
- Terminals: 1/4" Male, 3/16" Male
- Country of Origin (subject to change): Mexico
Restrictions and Compliance
- This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
- This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
